Product Name:

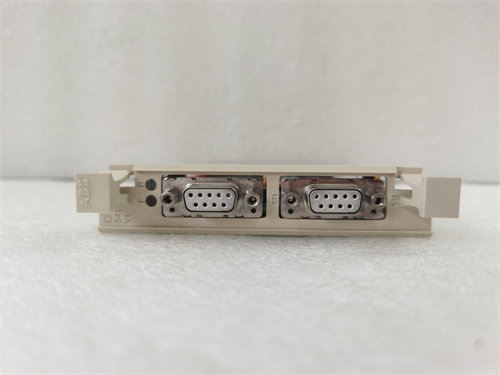

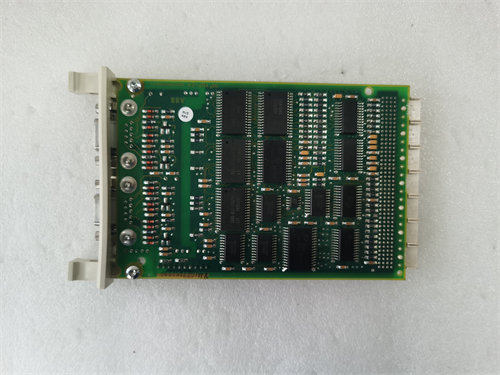

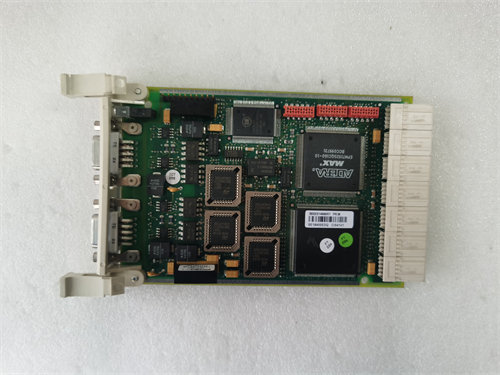

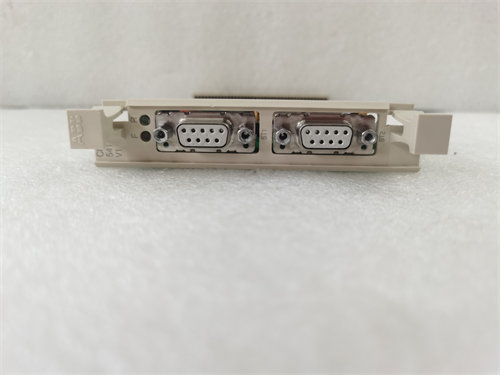

ABB CI541V1 3BSE014666R1 DCS PLC Module

Product Description:

The ABB CI541V1 3BSE014666R1 is a highly versatile I/O module used in Distributed Control Systems (DCS) and Programmable Logic Controllers (PLC). Part of ABB’s System 800xA platform, the CI541V1 provides advanced digital and analog I/O capabilities, and is designed to enable reliable control and monitoring of industrial processes. It is particularly suited for automation, control, and data acquisition in complex industrial systems.

The CI541V1 module supports various input and output configurations, including digital inputs, digital outputs, analog inputs, and analog outputs, offering high flexibility to integrate into diverse industrial applications. It is ideal for industries such as oil and gas, chemical plants, power generation, and automated manufacturing systems. With its seamless compatibility with ABB’s 800xA DCS, this module helps users achieve reliable, high-performance control and monitoring of processes in dynamic and demanding environments.

This module also provides redundancy options for critical applications, enhancing system reliability and minimizing downtime.

Product Parameters:

• Model: CI541V1 3BSE014666R1
• Type: I/O Module for ABB 800xA DCS/PLC
• Manufacturer: ABB
• Series: System 800xA
• Compatibility: 800xA DCS, PLC systems
• Applications: Automation, Control, Monitoring, Data Acquisition for industrial processes

Product Specifications:

General Features:

• Input and Output Types:

  • Digital Inputs: Capable of handling 24 V DC digital inputs, typically used for monitoring binary signals such as on/off switches, position indicators, or limit switches.
  • Digital Outputs: Can handle 24 V DC digital outputs, suitable for controlling relays, actuators, and other devices that operate in a binary manner.
  • Analog Inputs: Designed for 4-20 mA or 0-10 V input signals, typically from sensors that measure parameters like temperature, pressure, flow, or level.
  • Analog Outputs: Provides 4-20 mA or 0-10 V output signals for controlling variable devices such as valves, actuators, or other process equipment.

• Communication Interface:

  • The CI541V1 integrates seamlessly with ABB’s System 800xA DCS platform, allowing communication over high-speed backplanes and providing easy integration with other I/O modules within the system.
  • Supports communication protocols that enable smooth interaction with the central control system, allowing for effective real-time monitoring, control, and data acquisition.

• Redundancy:

  • The CI541V1 supports redundant configurations, which is critical for mission-critical industrial applications that require high availability and minimal downtime.

• Status Indicators:

  • Features LED indicators for status, including power, input/output status, and communication status. These LEDs provide real-time information to operators for quick diagnostics.

• Hot Swapping:

  • Designed to be hot-swappable, meaning that the module can be replaced without shutting down the system, ensuring continuous operation in critical processes.

Electrical Specifications:

• Power Supply:

  • Nominal Voltage: Typically 24 V DC for the module’s operation.
  • Power Consumption: Around 10 W depending on the configuration.

• Input Voltage:

  • Digital Inputs: 24 V DC (range typically 20-30 V DC).
  • Analog Inputs: 4-20 mA or 0-10 V for analog input signals.

• Output Voltage:

  • Digital Outputs: Typically 24 V DC.
  • Analog Outputs: 4-20 mA or 0-10 V, depending on the configuration.

• Input/Output Capacity:

  • The module typically supports up to 16 digital inputs, 16 digital outputs, 8 analog inputs, and 8 analog outputs. This can vary based on the specific configuration or model.

Mechanical Specifications:

• Dimensions:

  • Height: 3.2 inches (81 mm)
  • Width: 3.5 inches (89 mm)
  • Depth: 6.5 inches (165 mm)

• Weight:

  • Approximately 0.5 kg (1.1 lbs) depending on the configuration.

• Mounting:

  • The module is typically DIN rail-mounted for easy installation and maintenance in control panels or distributed control stations.

Environmental Specifications:

• Operating Temperature:

  • -10°C to +60°C (14°F to 140°F), suitable for industrial environments.

• Storage Temperature:

  • -40°C to +85°C (-40°F to +185°F), providing flexibility for storage and shipping.

• Humidity:

  • Can operate in environments with up to 95% relative humidity (non-condensing).

• Vibration Resistance:

  • Designed to withstand industrial vibration levels, ensuring durability in dynamic environments.

• Electromagnetic Compatibility (EMC):

  • The module meets EMC standards for industrial environments, ensuring that it will function reliably even in electrically noisy environments.

Key Benefits:

• Integration with ABB 800xA DCS: The CI541V1 module integrates seamlessly into the 800xA DCS platform, providing excellent system performance, monitoring, and control capabilities.

• Flexibility in I/O Configuration: With a wide range of digital and analog I/O types, the module can be used in various applications for controlling and monitoring sensors, actuators, and other industrial equipment.

• Redundancy and Reliability: The redundant configurations ensure high availability and reliability in mission-critical processes, reducing system downtime and enhancing operational safety.

• Ease of Installation and Maintenance: The hot-swappable design and DIN rail mounting make installation and maintenance efficient, reducing downtime and allowing for easy upgrades or replacements.

• Real-Time Monitoring and Diagnostics: LED indicators and seamless communication with the central control system enable real-time monitoring and fault detection, enhancing system reliability and preventing failures.

• Scalability: The system can easily be expanded with additional I/O modules, providing a flexible solution for growing or evolving industrial automation needs.

Conclusion:

The ABB CI541V1 3BSE014666R1 is an ideal I/O module for ABB’s 800xA DCS platform, providing highly reliable, flexible, and scalable control for industrial automation systems. It offers versatile digital and analog I/O capabilities, ensuring seamless integration with a wide range of industrial equipment. With support for redundancy and hot swapping, it is well-suited for mission-critical applications in industries such as oil and gas, chemical processing, power generation, and more. Its robust design and ease of maintenance make it an excellent choice for modern, dynamic industrial environments.
