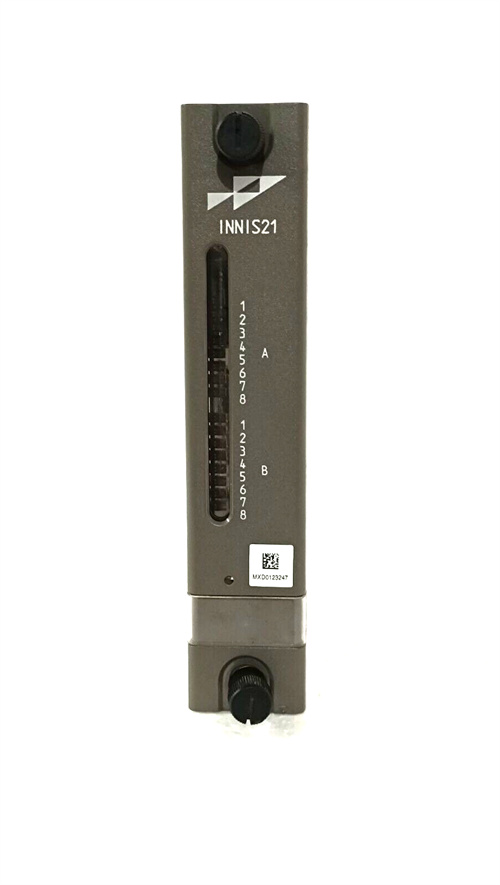

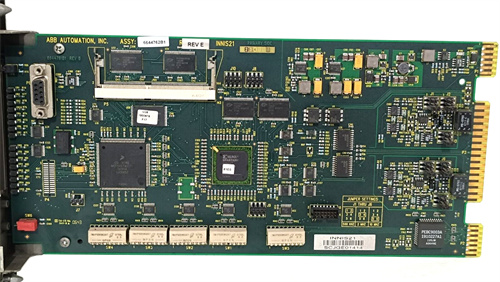

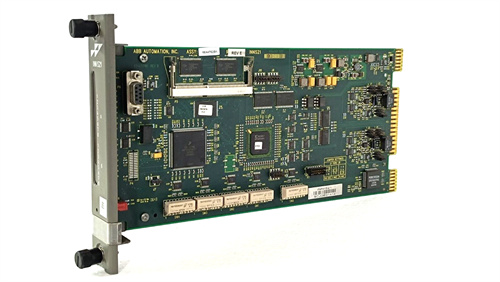

ABB INNIS21 DCS PLC Card

The ABB INNIS21 is a specialized DCS (Distributed Control System) PLC card designed for industrial automation. It is part of ABB’s comprehensive range of control and automation solutions that provide reliable and scalable control systems. The INNIS21 card is widely used in industries such as power generation, oil & gas, chemicals, and manufacturing to enhance control capabilities, improve efficiency, and ensure high levels of safety.

Product Name:

ABB INNIS21 DCS PLC Card

Product Description:

The ABB INNIS21 DCS PLC card is an advanced controller module designed for integration into ABB’s INFI 90 DCS platform. It supports both digital and analog I/O for process monitoring, control, and automation. With its high-speed processing power, flexible communication options, and fault-tolerant design, the INNIS21 card is suited for mission-critical operations where safety, efficiency, and reliability are essential.

The INNIS21 card is equipped with integrated features to facilitate seamless communication within complex industrial systems, making it ideal for both new projects and retrofitting existing systems. Its open architecture ensures compatibility with various third-party systems and networks, providing flexibility for system integration.

Product Parameters:

• Model: ABB INNIS21
• Type: DCS PLC Card (Programmable Logic Controller)
• Communication Ports: Multiple communication ports for I/O connectivity (typically digital and analog inputs/outputs)
• Input Voltage: 24V DC (Standard, may vary based on specific system configurations)
• Operating Temperature Range: -20°C to 60°C (for operation in diverse environmental conditions)
• Dimensions: Variable depending on mounting configuration (check specific model datasheets)
• Weight: Typically 0.5-1 kg (dependent on card configuration and I/O options)
• Mounting Type: Designed for rack or panel mounting as part of the larger DCS setup
• I/O Capacity: Capable of handling both digital and analog I/O channels with high density (specifics depend on configuration)
• Signal Types: Digital (binary) and Analog (continuous signals such as temperature, pressure, etc.)
• Communication Protocols Supported: Modbus, Profibus, and other industry-standard protocols for integration into larger systems

Specifications:

1. I/O Channels:

   • Digital I/O: Supports binary on/off signals for discrete control (e.g., relays, switches, etc.).
   • Analog I/O: Supports continuous signals (e.g., for temperature, pressure, flow rate control) with high accuracy and precision.
   • The INNIS21 card can be configured to handle up to 96 I/O points, providing a flexible solution for process control in large-scale operations.

2. Real-Time Control:

   • High-speed processing allows the card to manage real-time data inputs and control commands for fast system responses in critical applications.
   • Supports process loops for closed-loop control, optimizing system performance.

3. System Integration:

   • Designed for seamless integration with ABB INFI 90 DCS and other third-party control systems via standard protocols.
   • Supports Modbus RTU, Profibus, Ethernet, and other industrial communication standards for interoperability.

4. Redundancy and Reliability:

   • Fault tolerance and redundancy features ensure continuous operation in high-stakes environments.
   • Redundant power supplies and communication links enhance system availability and resilience to failure.

5. Signal Conversion:

   • Analog-to-digital and digital-to-analog conversion features for reliable signal transmission across the network.

6. Diagnostic Features:

   • Built-in diagnostic capabilities allow for real-time monitoring of system health and early detection of potential issues before they affect system performance.
   • Extensive diagnostic alarms and event logging help to ensure continuous system optimization and fast troubleshooting.

7. Mounting and Configuration:

   • The INNIS21 card is typically installed in an ABB control rack and can be configured for various system topologies, such as centralized or decentralized control systems.
   • Mounting is simple and designed to fit within the rack and panel systems of ABB’s DCS architecture.

8. Power Consumption:

   • Optimized for energy efficiency, the INNIS21 card minimizes power consumption while ensuring reliable and continuous operation.

9. Environmental Durability:

   • Designed for industrial environments, the INNIS21 card can withstand extreme temperatures, humidity, and electrical noise typically encountered in large-scale manufacturing and process control operations.

Applications of the ABB INNIS21 DCS PLC Card:

The ABB INNIS21 DCS PLC card is used in a wide range of industries where complex control systems are required for automation. Some key application areas include:

• Power Generation Plants:
  • For controlling turbines, generators, and auxiliary systems. It ensures stable operations and real-time control of the energy production processes.
• Oil & Gas Industry:
  • Used in exploration, production, and refining processes. The card ensures safe and efficient management of critical assets and pipeline systems.
• Water & Wastewater Treatment:
  • For managing treatment plants, monitoring pumps, filters, and dosing systems, as well as controlling the flow of water and chemicals.
• Chemical Processing:
  • The INNIS21 card controls chemical reactors, distillation columns, and other sensitive chemical processing units that require accurate and continuous monitoring and control.
• Manufacturing Automation:
  • Controls assembly lines, robotic systems, and complex manufacturing processes in industries such as automotive, food & beverage, and electronics.

Advantages of the ABB INNIS21 DCS PLC Card:

1. High-Speed Real-Time Control:

   • The INNIS21 card provides fast processing speeds, ensuring immediate response to control commands in real-time applications.

2. Scalable and Flexible:

   • Easily scalable to accommodate a growing number of I/O points or additional functionalities, making it suitable for both small and large industrial systems.

3. Fault Tolerance:

   • With its built-in redundancy features, the INNIS21 card ensures maximum system uptime and reliability.

4. Industry Standard Protocols:

   • Supports multiple communication protocols, ensuring easy integration with other industrial equipment and systems.

5. Reduced Downtime:

   • The advanced diagnostics and built-in redundancy features help prevent unexpected failures, reducing downtime in critical systems.

6. Durability:

   • Designed for harsh industrial environments, the card can function in temperatures ranging from -20°C to 60°C, ensuring reliability in challenging conditions.

7. Low Maintenance:

   • Designed for longevity with minimal maintenance requirements, the INNIS21 card is ideal for continuous industrial operations.

Conclusion:

The ABB INNIS21 DCS PLC card is a powerful and flexible component designed to meet the demands of complex industrial automation systems. Whether used in power generation, oil & gas, chemical processing, or manufacturing, this card offers high-speed real-time control, seamless communication, and robust reliability. With its scalability and fault-tolerant design, it ensures that your system operates with high availability, minimal downtime, and optimal performance.

If you need more detailed information on specific configurations or applications for your industry, feel free to ask!
