The Bently Nevada 3500/42M 140734-02 is part of Emerson’s Bently Nevada series of condition monitoring and protection systems. This specific module is designed for use in critical machinery monitoring, including vibration and dynamic measurement in industrial processes. It’s commonly found in applications like gas turbines, compressors, pumps, and motors—typically in power generation, oil & gas, manufacturing, and chemical processing industries.
Here’s a detailed overview:
Product Name:

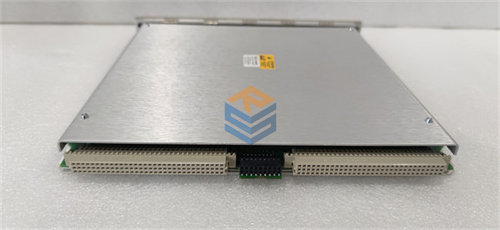

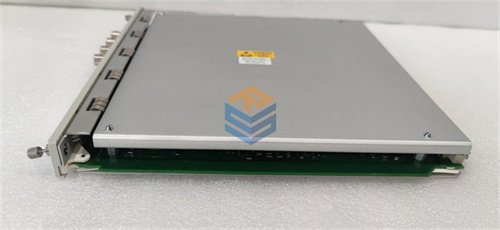

Bently Nevada 3500/42M 140734-02 – Vibration Monitoring Module
Product Description:
The Bently Nevada 3500/42M module is a part of the Bently Nevada 3500 series, which is a widely used condition monitoring system (CMS) in industrial environments. The 3500/42M specifically serves as a vibration monitoring module, designed to monitor and measure the health of rotating machinery such as turbines, motors, compressors, and pumps. This module provides essential real-time monitoring, offering high accuracy in detecting anomalies such as unbalance, misalignment, bearing wear, and rotor instability.
The 140734-02 part number refers to a specific configuration of the 3500/42M vibration monitoring module, designed to integrate seamlessly with the larger Bently Nevada 3500 rack system.
Key Features:
- Advanced Vibration Monitoring: Measures vibration levels and provides insights into the condition of machinery components.
- Compatibility: Works within the 3500 rack system, easily integrating with other modules.
- Real-Time Monitoring: Continuous measurement of vibration signals, providing real-time feedback on machinery health.
- High Sensitivity: Capable of detecting minor vibration anomalies that could indicate potential issues before they lead to catastrophic failure.
- Flexible Input Configurations: Supports multiple sensor types (e.g., accelerometers, proximity probes).
Product Parameters & Specifications:
1. General Specifications:
- Module Type: Vibration Monitoring/Protection Module
- Model Number: 3500/42M 140734-02
- Application: Machinery condition monitoring, with emphasis on vibration, alignment, and operational integrity.
- Form Factor: Rack-mounted within the Bently Nevada 3500 rack system (typically a 19-inch rack).
2. Electrical Specifications:
- Operating Voltage:
- 24V DC (Nominal), with tolerance for wide voltage ranges such as 18V to 32V DC.
- Power Consumption: Typically low, around 10W to 15W (depending on specific configuration and load).
- Input Channels: Supports multiple input channels for various vibration sensors and other types of dynamic measurements.
3. Input/Output Characteristics:
- Vibration Input Channels:
- Typically, 2 or 4 channels depending on the configuration.
- Input from proximity probes, accelerometers, and other vibration sensors.
- Dynamic Measurement: Capable of measuring high-frequency dynamic signals (e.g., acceleration, velocity, displacement).
- Signal Conditioning: Provides built-in signal conditioning for a wide variety of sensor types.
- Output:
- Real-time data transmitted to the central 3500 rack system for integration with other monitoring modules and SCADA systems.
- Alarming: Alerts operators of abnormal vibration conditions that could indicate machine faults.
4. Performance Specifications:
- Vibration Measurement Range:
- Typical frequency response range: 0.1 Hz to 10,000 Hz (depending on the sensor type).
- Measurement accuracy is typically within ±1% of full-scale deflection for most applications.
- Sensitivity:
- High Sensitivity: The module is designed to detect even slight changes in vibration patterns, which is crucial for early fault detection.
5. Communication Protocols:
- Communication Interface:
- The module communicates with the 3500 rack system via proprietary protocols, ensuring high-speed and reliable data transmission.
- Compatible with Bently Nevada’s 3500 Monitoring System and can be integrated with Emerson’s AMS Suite for centralized monitoring and diagnostics.
6. Environmental Specifications:
- Operating Temperature Range:
- Typically operates in 0°C to 60°C (32°F to 140°F).
- Storage Temperature Range:
- -40°C to 85°C (-40°F to 185°F).
- Humidity: Typically designed to function within 0 to 95% non-condensing humidity.
7. Protection and Safety Features:
- Overvoltage and Surge Protection: Built-in protection against electrical surges and transients.
- Signal Isolation: Ensures that each input is isolated to avoid any cross-interference, especially in electrically noisy environments.
- Fault Diagnostics: The system can self-diagnose common issues like sensor malfunctions, connection problems, or power supply failures.
Applications:
The 3500/42M module is used for vibration monitoring in critical machinery, especially in industries where equipment failure can lead to significant downtime or safety hazards. Typical applications include:
- Power Generation: Used in the monitoring of turbines, compressors, and generators.
- Oil & Gas: Employed in offshore and onshore platforms to monitor pumps, compressors, and drilling equipment.
- Chemical Manufacturing: Vibration monitoring in pumps, reactors, and other critical equipment.
- Mining & Metal Processing: Used to monitor crushers, mills, and conveyor systems.
- Automotive Manufacturing: Employed in monitoring robotic arms and other critical machinery in production lines.
Advantages:
- Early Fault Detection: Detects early signs of vibration-related problems, allowing for proactive maintenance and reducing the risk of catastrophic failures.
- Real-Time Data: Provides real-time feedback to operators, ensuring they can respond quickly to changes in machinery health.
- Scalable: The system is modular and can be expanded with additional modules for larger monitoring setups.
- Reliable: Bently Nevada’s reputation for robust, high-quality monitoring technology ensures that the 3500/42M module can operate in demanding industrial environments.
Conclusion:
The Bently Nevada 3500/42M 140734-02 is an essential component for condition-based monitoring and protection systems. It provides real-time, high-precision data on the health of critical machinery, primarily focusing on vibration monitoring. By integrating with the broader 3500 rack system, this module is designed for continuous monitoring of rotating equipment, helping to prevent unplanned downtime, optimize maintenance schedules, and improve the overall reliability of industrial processes.
For detailed, application-specific information, including wiring diagrams, pinouts, and further technical documentation, it’s recommended to consult the official Bently Nevada 3500 series manuals or reach out to Emerson’s support.
