The HIMA F3 DIO 20/8 02 982200442 is a Digital Input/Output Module designed for use in HIMA’s F3 Series of Distributed Control Systems (DCS) or Programmable Logic Controllers (PLC). It provides 20 digital inputs and 8 digital outputs, making it suitable for interfacing with digital field devices in process automation and safety-critical applications.
Here’s an overview of the product, including product name, description, and detailed specifications:
Product Name:

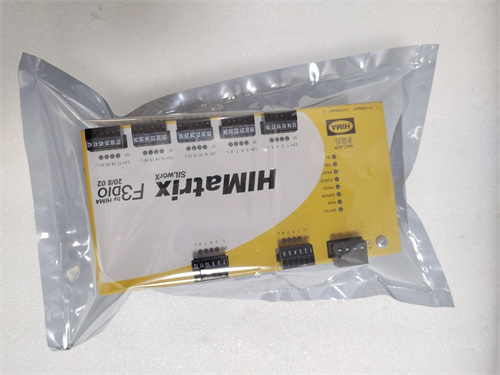

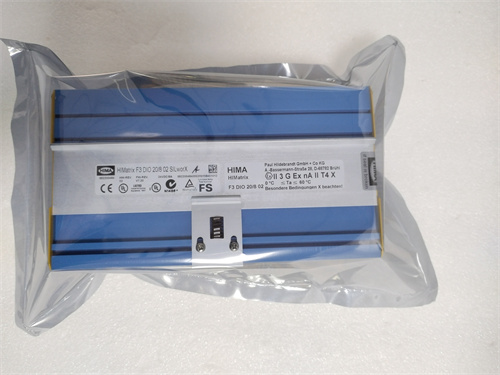

HIMA F3 DIO 20/8 02 982200442
Product Description:
The HIMA F3 DIO 20/8 02 982200442 is a digital I/O module in the HIMA F3 Series, primarily used in safety systems and industrial automation. This module provides 20 digital inputs and 8 digital outputs, designed for use in applications where reliable monitoring and control of digital signals are critical.
The F3 DIO 20/8 module is used to interface directly with field devices, such as sensors, actuators, switches, and other digital equipment, making it an essential component in safety systems for industries such as oil and gas, chemical processing, power generation, and manufacturing.
The HIMA F3 Series modules are known for their high availability, fault tolerance, and compliance with safety standards, ensuring that critical processes are controlled and monitored with a high level of reliability. The F3 DIO 20/8 module supports safe I/O operations, ensuring that both the inputs and outputs can handle critical operations, often involving emergency shutdown systems and fail-safe configurations.
Product Parameters:
- Model: F3 DIO 20/8 02 982200442
- Type: Digital Input/Output Module
- Inputs: 20 Digital Inputs (Binary)
- Outputs: 8 Digital Outputs (Binary)
- Power Supply: Typically powered from the F3 Series backplane or external 24V DC supply.
- Module Type: Field I/O Module for HIMA’s F3 safety system.
Product Specifications:
General Features:
-
20 Digital Inputs:
- Provides 20 binary inputs, capable of detecting ON/OFF states from field devices like sensors, limit switches, push buttons, etc. Typically, these inputs are used for detecting process conditions such as pressure, temperature, or flow states.
-
8 Digital Outputs:
- Includes 8 binary outputs for controlling field devices like valves, actuators, or pumps. These outputs allow the control system to interact with the process equipment and perform actions based on input signals or control logic.
-
Safety Integrity Level (SIL):
- The module is designed to meet SIL 3 (Safety Integrity Level 3) as per IEC 61508 standards, making it suitable for functional safety applications that require the highest levels of safety and reliability. This includes critical systems such as emergency shutdown systems (ESD) and fire & gas detection systems.
-
Real-time Communication:
- The module supports real-time communication between field devices and the safety system, providing accurate and timely input/output data transmission.
-
Redundancy:
- Offers redundant communication paths and supports fault-tolerant designs, ensuring that even in the event of a failure, the system can continue to operate reliably, reducing downtime and improving process safety.
-
High Reliability:
- Designed to meet stringent industrial and safety standards, ensuring robust performance in demanding environments.
Electrical Specifications:
-
Power Supply:
- Powered by 24V DC, typically sourced from the HIMA F3 backplane or an external power source.
-
Input Voltage Range (Digital Inputs):
- Typically 24V DC for digital inputs, compatible with various field devices requiring standard industrial voltages.
-
Input Current (Digital Inputs):
- The current for each digital input may vary, but each input is typically designed to consume a low current (e.g., 10–20mA).
-
Output Voltage (Digital Outputs):
- Typically 24V DC for output control of connected field devices.
-
Output Current (Digital Outputs):
- Each output is designed to handle standard industrial output currents, typically around 500mA per output.
Communication and Interface:
-
Bus Communication:
- Communicates with the HIMA F3 safety system over an internal backplane or fieldbus system (like PROFIBUS, Modbus, or Ethernet), depending on the specific configuration of the system.
-
Field Wiring:
- The module has terminals for connecting the field wiring for both inputs and outputs, which is suitable for industrial applications where direct field device connections are needed.
-
Status Indicators:
- Equipped with LED indicators to show the operational status of the module and each input/output channel, providing clear visibility for operators and maintenance personnel.
Environmental Specifications:
-
Operating Temperature Range:
- 0°C to 60°C (32°F to 140°F), suitable for use in industrial environments with typical temperature fluctuations.
-
Storage Temperature Range:
- -40°C to 85°C (-40°F to 185°F), allowing for safe storage under extreme conditions.
-
Humidity:
- 5% to 95% RH (non-condensing), making it suitable for use in environments with varying humidity levels.
-
Vibration and Shock Resistance:
- Designed to meet industrial standards for vibration and shock, ensuring durability in demanding industrial applications.
Compliance and Safety:
-
SIL 3 Certified:
- Meets SIL 3 (Safety Integrity Level 3) for safety applications, as per IEC 61508 and IEC 61511 standards, providing assurance for use in critical safety systems.
-
CE Marking:
- The module complies with European Union safety standards for electrical equipment.
-
UL Listed:
- Meets UL (Underwriters Laboratories) safety standards, ensuring the module is safe for use in industrial applications worldwide.
-
RoHS Compliant:
- Free from hazardous materials in compliance with the RoHS directive.
Applications:
-
Process Automation:
- Used in process control systems in industries like oil & gas, chemical processing, and power generation to interface with critical process equipment.
-
Safety Systems:
- Ideal for use in functional safety systems, including emergency shutdown systems (ESD), fire & gas detection, and fail-safe control systems.
-
Industrial Automation:
- Suitable for automation control in applications such as manufacturing, robotics, and packaging.
-
Critical Control Systems:
- Used in systems where high availability and fault tolerance are essential for maintaining the safe operation of industrial processes.
Benefits:
-
High Safety Integrity:
- Meets SIL 3 requirements, providing high levels of safety for critical applications where the risk of failure can result in significant harm.
-
Flexible I/O Configuration:
- The 20/8 configuration allows for flexible interfacing with a variety of field devices, making it suitable for diverse automation needs.
-
Reliable Performance:
- Built to withstand harsh industrial environments and ensure continuous operation without compromise to safety or performance.
-
Redundant Communication:
- Offers fault-tolerant communication, ensuring reliable operation even in the event of a failure.
-
Easy Integration:
- Seamlessly integrates into HIMA F3 Series safety and control systems, providing a plug-and-play solution for safety-critical applications.
The HIMA F3 DIO 20/8 02 982200442 module is a vital part of safety-critical and industrial automation systems, providing robust digital I/O functionality for applications requiring high levels of reliability and safety.
