Product Name:

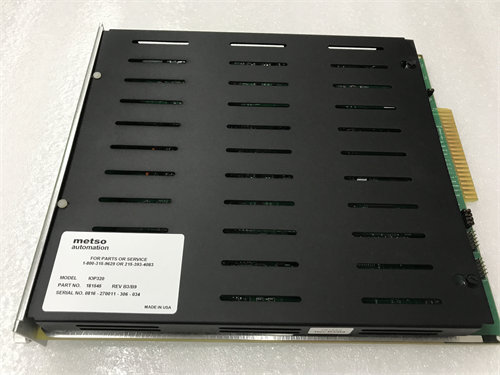

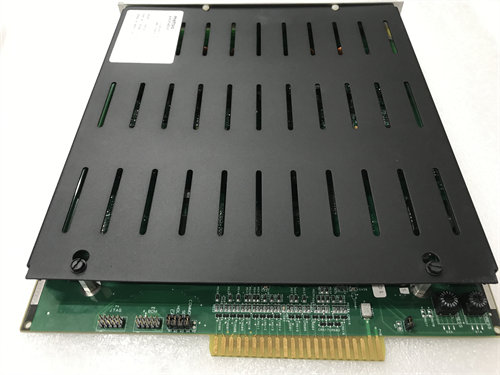

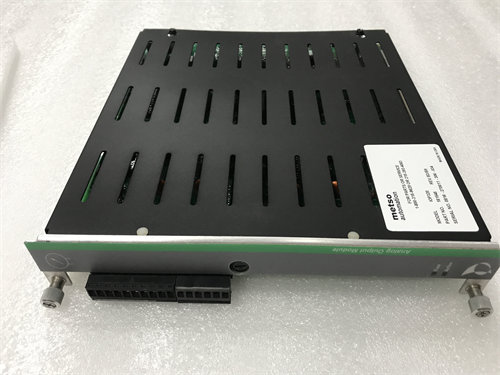

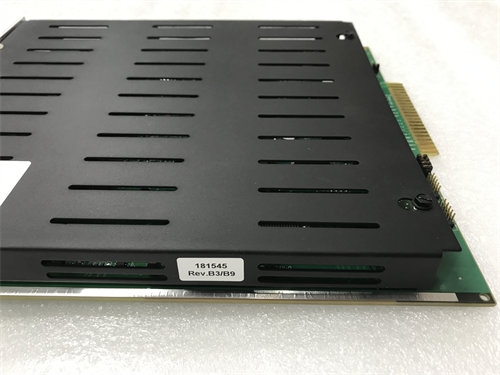

METSO IOP320 DCS PLC Module

Product Description:

The METSO IOP320 is a Distributed Control System (DCS) PLC module designed for industrial automation, control, and monitoring applications. This module is part of the Metso DNA process control system and is typically used in industries such as paper and pulp, mining, metals, and power generation. The IOP320 offers advanced control, monitoring, and diagnostics for real-time data processing, supporting both analog and digital I/O signals.

The IOP320 is highly versatile, with built-in capabilities to interface with a wide range of field devices such as sensors, actuators, and control valves. Its seamless integration into the Metso DNA system ensures it plays a crucial role in optimizing plant operations, minimizing downtime, and improving process efficiency.

The module is known for its high reliability, advanced diagnostics, and flexible I/O configurations. It is designed to deliver consistent performance in harsh industrial environments, ensuring continuous operation and data integrity.

Product Parameters:

• Model: IOP320
• Manufacturer: Metso
• Type: DCS PLC I/O Module
• Application: Industrial process control and automation, particularly in paper and pulp, mining, metals, and power generation industries.
• System Compatibility: Designed to integrate seamlessly with the Metso DNA process control system.
• I/O Type: Supports both analog and digital inputs and outputs.
• Field Devices Supported: Compatible with a wide range of field devices such as temperature transmitters, flow meters, pressure sensors, and more.
• Primary Function: Real-time process control, monitoring, and data acquisition for industrial automation systems.

Product Specifications:

General Features:

• Real-time Data Acquisition & Control:
  The IOP320 module supports high-speed data acquisition and real-time control of industrial processes, ensuring that all data from sensors and field devices is processed and acted upon promptly. This enables efficient decision-making and optimized process management.

• Flexible I/O Configuration:
  It offers a highly customizable I/O configuration, allowing it to accommodate a variety of industrial sensors and devices with both analog and digital signal types. This makes it a flexible solution for diverse industrial processes.

• Seamless Integration with Metso DNA:
  The IOP320 is fully compatible with Metso DNA, Metso’s advanced process control and automation platform. This integration allows for centralized monitoring, configuration, and control across the entire automation system, improving overall plant efficiency and reducing operational costs.

• Advanced Diagnostics & Monitoring:
  The module includes built-in diagnostic tools that continuously monitor system health, helping operators to identify and troubleshoot issues before they result in system failures or downtime. These diagnostics contribute to improved predictive maintenance.

• High Reliability & Durability:
  Designed for operation in harsh industrial environments, the IOP320 ensures reliable performance even in extreme conditions, such as high temperatures, humidity, or electrical noise. Its rugged design minimizes the risk of failures and reduces maintenance needs.

Electrical Specifications:

• Power Supply:
  The module operates typically on a 24 V DC power supply, which is a standard for many DCS and PLC systems in industrial automation.

• Power Consumption:

  • Typical Power Consumption: 7W to 20W, depending on the configuration and the number of active I/O channels.

• Input Voltage:

  • 24 V DC (nominal)
  • Voltage Tolerance: ±10% typical.

• Current Consumption:
  The current consumption for the IOP320 module typically ranges from 300mA to 700mA depending on the connected devices and I/O configuration.

• Communication Protocols:

  • Modbus RTU or Ethernet/IP for system communication, allowing it to interface seamlessly with higher-level control systems and other networked devices.
  • HART Protocol for integrating field devices and sensors that require communication over a standard 4-20mA loop.

Mechanical Specifications:

• Dimensions:
  The IOP320 module is typically designed to fit into 19-inch rack-mounted or DIN rail enclosures, common in Metso’s DCS systems. Dimensions vary based on the configuration but are generally compact for easy installation in control cabinets.

• Weight:
  The module generally weighs around 0.8 kg to 1.5 kg, depending on the configuration.

• Mounting:
  The module is designed for rack-mounted installation, commonly used in Metso DNA systems, ensuring secure mounting and easy access for maintenance and troubleshooting.

Environmental Specifications:

• Operating Temperature Range:

  • Typically operates within a temperature range of -20°C to +70°C (-4°F to +158°F), making it suitable for a variety of industrial environments.

• Storage Temperature Range:

  • -40°C to +85°C (-40°F to +185°F), which allows for reliable storage in extreme conditions before installation or deployment.

• Humidity:

  • The IOP320 can operate in environments with relative humidity ranging from 5% to 95%, non-condensing, allowing it to function in a wide range of climates and conditions.

• Vibration Resistance:

  • Meets industrial standards for vibration resistance, including IEC 60068-2-6. This allows the module to be used in environments where moderate vibrations are present, such as in manufacturing plants or mining operations.

• Ingress Protection:

  • The module typically features an IP20 rating, which protects it from dust but is not fully sealed against water ingress. For additional protection, an external enclosure may be required depending on the application.

I/O Specifications:

• Analog Inputs/Outputs:

  • Supports 4-20mA or 0-10V analog inputs and outputs, commonly used in industrial applications for connecting to sensors and actuators.
  • Resolution: Typically 12-bit or 16-bit resolution, offering precise control and measurement.

• Digital Inputs/Outputs:

  • Supports 24 V DC digital inputs and outputs for control signals. These can be connected to devices like proximity switches, digital sensors, or actuators.

• Isolation:

  • Provides optical isolation for certain I/O points to protect the module from electrical surges and noise, which is especially critical in environments with high electromagnetic interference (EMI).

Compliance and Certifications:

• Certifications:

  • CE, UL, and CSA approvals for industrial safety standards.
  • Compliant with ATEX and IECEx standards for hazardous environments, ensuring safe operation in explosive atmospheres.

• Environmental Compliance:

  • RoHS-compliant, ensuring that the materials used in the module are free from hazardous substances like lead, mercury, and cadmium.

Summary:

The METSO IOP320 is a highly reliable and flexible DCS PLC module offering advanced process control, monitoring, and diagnostics for industrial automation systems. Its compatibility with Metso DNA, wide I/O support, and rugged design make it a great choice for demanding industries such as power generation, mining, metals, and paper/pulp manufacturing. With features like real-time data acquisition, flexible I/O configuration, and advanced diagnostics, the IOP320 enhances process efficiency and minimizes operational downtime.
